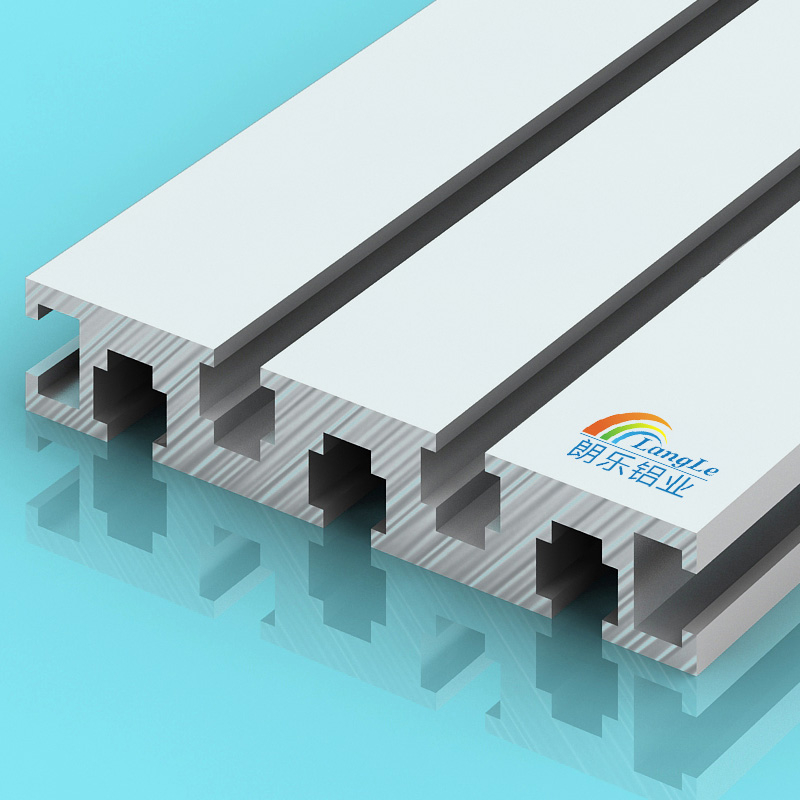

You see 15 Series Aluminum used in many industries because of its modular T-slot design. This design lets you build strong structures like workstations and carts using compatible accessories. The table below shows what makes this profile unique:
Feature | Description |
15 Series | Refers to a T-slot aluminum profile that is 0.32" wide. |
Modular Design | Lets you construct various structures with accessories for easy assembly. |
Engineers, manufacturers, and DIYers trust Hunan Langle Technology Co., Ltd. for their 10/15 Series Aluminium Extrusion. You can count on this series for strength and flexibility in your next project.
15 Series Aluminum Features
T-Slot Design
You will notice that the T-slot design stands out as the core feature of 15 Series Aluminum. The T-shaped grooves run along each profile, allowing you to attach brackets, panels, and accessories without welding or drilling. This groove-based system makes assembly and reconfiguration simple. You can build frames, workstations, enclosures, or even automation equipment with ease. If your project needs frequent changes or adjustments, the T-slot design lets you disassemble and realign parts quickly. This flexibility supports modular construction, which is why many industries choose 15 Series Aluminum for their setups.
Tip: The T-slot system helps you reuse components for new projects, saving both time and resources.
Material and Durability
Hunan Langle Technology Co., Ltd. uses high-quality 6063 aluminum alloy for their 10/15 Series Aluminium Extrusion. This material gives you a strong yet lightweight structure. The profiles show impressive mechanical properties, such as a typical ultimate tensile strength of 310 MPa (45 ksi) and a yield strength of 270 MPa (39 ksi). These numbers mean your frames can handle heavy loads without bending or breaking.
You also get excellent corrosion resistance. The natural oxide layer on aluminum protects it from rust. Anodized finishes make this protection even stronger, lasting 12-15 years outdoors. Powder-coated finishes can last up to 20 years. Even after exposure to saltwater, anodized parts show less than 5% loss in strength. Fatigue tests show that the aluminum keeps over 90% of its original strength after repeated use. This durability makes 15 Series Aluminum a smart choice for both indoor and outdoor projects.
Benefits of Finishes:
Anodized aluminum resists wear and corrosion.
Powder coating adds color and UV protection.
Hardcoat finishes increase surface hardness for tough environments.
Profile Sizes and Options
You can choose from a range of profile sizes in the 10/15 Series from Hunan Langle Technology Co., Ltd. Common options include LE-8-1220, LE-6-1515, and LE-6-1525. Each profile fits different project needs, from small workbenches to large machine enclosures. The modular system means you can mix and match profiles and accessories to create custom solutions.
Here is a quick look at some compatible finishes:
Finish Type | Description |
Black Anodize w/ Electrolytic Color | An economical color option with protection similar to clear anodize. |
Hardcoat | A technical finish for increased durability and corrosion resistance. |
Hardcoat with PTFE (Teflon®) | Adds a permanent lubricant for reduced wear and maintenance. |
You can also add connectors, bolts, and decorative elements to your design. This flexibility helps you build exactly what you need, whether you work in a factory or on a DIY project at home.
Applications of 15 Series Aluminum
Industrial and Structural Uses
You can use 15 Series Aluminum to build strong machine frames, assembly lines, and safety fences. Many factories choose this material because it offers a balance of strength and light weight. You can assemble structures quickly, which helps you save time on large projects. The T-slot design lets you add or remove parts without welding. This makes it easy to change layouts or upgrade equipment.
When you work with automation and robotics, you need materials that are both strong and easy to handle. 15 Series Aluminum fits these needs well. You can create reliable bases for machines and robots. The profiles work with drive and control systems, making them popular in modern factories. You also get faster assembly compared to traditional steel frames.
Tip: Always check for sharp edges and use smooth transitions in your design. This helps prevent stress points and increases the life of your structure.
Here are some safety tips for structural applications:
Avoid sharp corners to reduce the risk of fatigue failure.
Choose joining methods that provide rigid connections.
Select alloys with high fatigue resistance for heavy-duty projects.
Distribute loads evenly to prevent cracks.
Use anodizing or heat treatment to improve surface quality.
Inspect your structures regularly to catch problems early.
Workstations and Enclosures
You can build custom workstations and enclosures with 15 Series Aluminum. The profiles let you design spaces that fit your workflow. You can add shelves, panels, or tool holders wherever you need them. This flexibility helps you create efficient work areas for assembly, testing, or packaging.
The table below shows how 15 Series Aluminum benefits different workstation and enclosure applications:
Application Type | Benefits |
Workstations | Balance of strength and versatility |
Enclosures | Suitable for medium-duty structures |
Automation Frameworks | Provides reliable solutions for various uses |
Machine Bases | Commonly used in automation and robotics |
You can also use these profiles for automation frameworks. The modular system allows you to expand or change your setup as your needs grow. You do not need special tools for assembly, which makes the process simple and fast.
Custom Projects
If you enjoy DIY projects or need a unique solution, 15 Series Aluminum gives you the freedom to create almost anything. You can build carts, display racks, or even furniture. The T-slot system lets you attach accessories, wheels, or panels with ease. You can adjust your design as you go, which is great for prototypes or one-of-a-kind builds.
You should keep a few things in mind for custom projects:
Plan your design to avoid sharp edges and stress points.
Use the right connectors for a strong build.
Check your structure for even load distribution.
Choose finishes that match your environment, such as anodized or powder-coated surfaces.
Note: Regular maintenance and inspection help your custom projects last longer and perform better.
You can use 15 Series Aluminum for both professional and hobbyist applications. The system adapts to many needs, from industrial automation to creative home projects. You get a material that is easy to work with and strong enough for most tasks.
Advantages of 15 Series Aluminum
Strength and Versatility
You get impressive strength and adaptability when you choose this material. The profiles support heavy loads and resist bending, which makes them reliable for both large machines and small workbenches. You can use them in factories, labs, or even at home. The durability comes from the high-quality aluminum alloy, which stands up to daily wear and tear. You also help the environment when you use this material. Aluminum can be recycled again and again without losing its properties. Recycling uses only about 8% of the energy needed for new aluminum. Each ton of recycled aluminum saves 24 barrels of oil, over 15 tons of water, and more than 9 tons of carbon dioxide. You make a sustainable choice that benefits your project and the planet.
Easy Assembly
You save time and money with the easy assembly system. You do not need heavy machines or advanced skills to put the pieces together. Workers can build frames and structures quickly, which reduces labor costs. You can finish projects faster and stay within your budget. The T-slot design lets you change or expand your setup without starting from scratch. This flexibility helps you adjust to new needs or fix problems without much effort.
Tip: You can assemble most projects with simple tools, making the process accessible for everyone.
Customization
You can tailor your design to fit any project. The profiles come in different lengths, colors, and finishes. This variety lets you match your structure to your workspace or brand. The table below shows how each option benefits different project types:
Customization Option | Benefits | Project Types |
Length | Tailored fit for any design | Workstations, automation frames, machine bases |
Color | Better appearance and branding | Workstations, automation frames, machine bases |
Finish | More durability and less wear | Workstations, automation frames, machine bases |
You can also add accessories like connectors, panels, or wheels. This makes your project unique and functional for any situation.
15 Series vs Other Series
15 Series vs 10 Series
When you compare 15 Series and 10 Series, you notice clear differences in size and strength. The 10 Series has a 1-inch profile width and works best for lighter projects. The 15 Series uses a 1.5-inch profile, which gives you more load capacity and makes it a better choice for heavy-duty tasks. You often see the 10 Series in small frames or enclosures. The 15 Series fits industrial machinery and workstations.
Series | Profile Width | Load Capacity | Common Applications |
10 | 1 inch | Light | Small frames, enclosures |
15 | 1.5 inches | Heavy | Industrial machinery, workstations |
You should choose the 15 Series when your project needs more strength and stability. The 10 Series works well for compact, economical builds.
15 Series vs Metric (40 Series)
You may also see metric profiles like the 40 Series. The 15 Series follows the fractional standard, measuring 1.5 inches (about 38.1 mm). The 40 Series uses metric sizing, with a 40 mm x 40 mm profile. Both series offer strong, modular solutions, but they follow different standards.
Series Type | Dimensions (mm) | Standard |
15 Series | 1.5 inch (38.1) | Fractional |
40 Series | 40 x 40 | Metric |
15 Series: You often use this for smaller, lighter structures such as workstations and small frames.
40 Series: This series fits larger, more robust applications like machine frames and industrial equipment.
You need to match your accessories and connectors to the correct standard. Mixing fractional and metric parts can cause problems during assembly.
Choosing the Right Series
You should start by looking at your project’s size and load requirements. If you need a strong frame for heavy machinery, the 15 Series Aluminum gives you the support you need. For lighter or smaller builds, the 10 Series may save you space and cost. If your project uses metric parts or you work in a region that prefers metric standards, the 40 Series could be the best fit.
Tip: Always check the compatibility of your accessories and fasteners before you begin assembly. This step helps you avoid delays and ensures a smooth build.
You can find all these series from trusted suppliers like Hunan Langle Technology Co., Ltd. Their wide selection helps you match the right profile to your project, whether you build a simple enclosure or a complex industrial system.
Selecting 15 Series Aluminum
Assessing Project Needs
You should start by looking at your project’s requirements before choosing a profile. Think about the weight your structure must support, how often you might need to change the design, and your budget. The table below shows important criteria to help you decide:
Criteria | Description |
Load-Bearing Capacity | Make sure the profile supports your project’s weight and size. |
Modularity | Choose a system that lets you change designs easily without special tools. |
Easy Installation | Pick profiles that allow quick assembly and future adjustments. |
Cost | Consider the price, which depends on size, material, and extra parts. |
You can use this table to match your needs with the right profile. If your project needs to change often, modularity and easy installation become more important.
Sourcing and Availability
You want to buy from a supplier that offers quality and reliability. Hunan Langle Technology Co., Ltd. provides a wide range of profiles for different uses. The table below shows some available options and their details:
Product Description | FOB Price (USD) | Minimum Order Quantity |
V Slot 3D Printer CNC Router Industrial Aluminum Profile 15180 | 2.86-3.5 | 1 Kilogram |
6063 Aluminum Extrusion Slim Window and Aluminium Profile for Frame | 2.86-3.5 | 1 Kilogram |
6mm Slot 15 Series Powder Coated Industrial Extrusion Well Finish Profile | 2.86-3.5 | 1 Kilogram |
You can order small or large quantities, making it easy to get what you need for any project.
Installation Tips
You can assemble most structures with basic tools. For best results, follow these steps:
Clean profiles with soft water or mild soap and a sponge.
Avoid harsh cleaners like ammonia or bleach.
Do not use steel wool or metal brushes.
Rinse and dry profiles to prevent spots.
Inspect for fading, stains, or corrosion, especially around joints.
Tip: In industrial settings, clean your profiles every three months to keep them in top shape.
Regular maintenance helps your 15 Series Aluminum structures last longer and perform better.
You have learned that 15 Series Aluminum gives you strength, flexibility, and easy assembly for many projects. You can use it for machine frames, workstations, or custom builds. The profiles support heavy loads and resist corrosion.
Consider choosing trusted suppliers like Hunan Langle Technology Co., Ltd. for your next project. You will get quality and reliable service.
FAQ
What tools do you need to assemble 15 Series Aluminum structures?
You only need basic hand tools like an Allen wrench, screwdriver, and rubber mallet. The T-slot design allows you to connect parts without welding or special equipment.
Can you cut 15 Series Aluminum profiles at home?
Yes, you can cut profiles using a standard miter saw with a blade for non-ferrous metals. Always wear safety goggles and measure twice before cutting.
Is 15 Series Aluminum suitable for outdoor use?
Yes! The 6063 aluminum alloy resists corrosion. Anodized or powder-coated finishes add extra protection, making these profiles a great choice for outdoor projects.
What accessories work with 15 Series Aluminum?
You can find many compatible accessories to customize your build.
