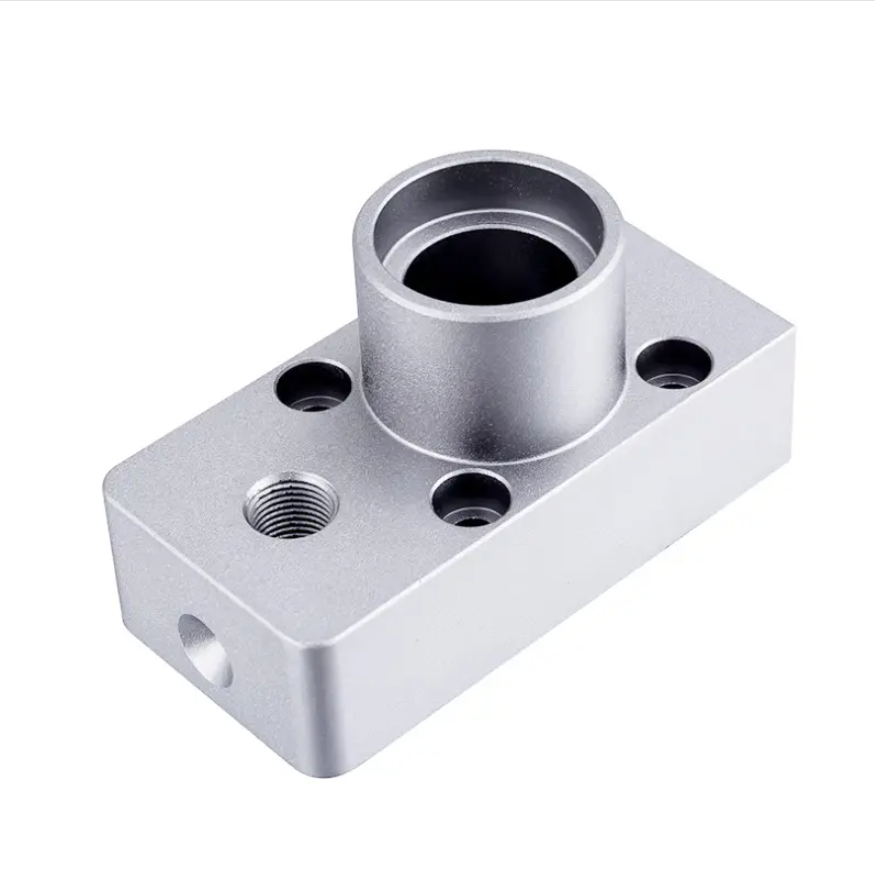

CNC milling has revolutionized the manufacturing landscape, offering unmatched precision and efficiency in producing complex parts across various industries. This comprehensive guide delves into the history and evolution of CNC milling, exploring its transition from early numerical control systems to modern computer numerical control technology. We will examine the fundamental components of CNC milling machines, the significance of G-code, and the differences between subtractive and additive manufacturing. Additionally, we will highlight the diverse applications of CNC milling, its advantages and limitations, and provide insights into the future of this essential manufacturing process. Join us as we uncover the intricacies of CNC milling and its pivotal role in shaping the modern industrial world.
History and Evolution of CNC Milling
Early Beginnings: Numerical Control (NC)
Numerical Control, or NC, began in the 1940s and 1950s. It was developed to automate machining during World War II when precision and efficiency became crucial. NC machines used punched tape to store instructions. These tapes directed the machine’s movements to cut specific shapes. Although this was a big step forward, the process was rigid. Any design change meant creating new punched tapes, which was slow and costly. The machines could only perform limited operations and lacked flexibility.
Despite these limits, NC introduced the vital idea of automating machining through programmed instructions. This concept laid the foundation for modern CNC milling.
Transition to Computer Numerical Control (CNC)
The 1960s and 1970s saw the rise of computers, which transformed NC into CNC. Instead of punched tapes, CNC machines stored programs digitally. This made changing designs easier and faster. Operators could edit programs directly without creating physical tapes.
CNC machines also gained the ability to perform more complex cuts. They could move tools along multiple axes, enabling the creation of intricate 3D shapes. This flexibility and precision made CNC milling popular in industries needing tight tolerances, like aerospace and automotive.
Although programming became more complex, the benefits of CNC—speed, accuracy, and flexibility—far outweighed the challenges. Today, CNC technology continues evolving, integrating new software and hardware innovations.
Technological Advancements Over the Years
Since its early days, CNC milling has seen many technological improvements:
● Multi-axis machining: Machines now operate on 3, 4, or 5 axes, allowing for more complex parts without multiple setups.
● Improved software: Advanced CAD/CAM software makes programming simpler and more intuitive.
● Faster spindles and tool changers: These increase production speed and reduce downtime.
● Enhanced materials and tool coatings: These extend tool life and allow milling of harder materials.
● Automation and IoT: Modern CNC mills can self-monitor, predict maintenance needs, and integrate into smart factories.
These advancements have made CNC milling a cornerstone of modern manufacturing, enabling mass production of precise, complex parts efficiently.
Early CNC machines relied on punched tape, which limited flexibility; modern CNC uses digital programs for faster, easier updates and greater precision.
Understanding the Basics of CNC Milling
Key Components of CNC Milling Machines
CNC milling machines have several important parts that work together to create precise parts:
● Spindle: Holds and spins the cutting tool. It moves at different speeds depending on the material and cut.
● Cutting Tool: The part that removes material from the workpiece. Tools vary by shape and size, such as end mills or ball nose mills.
● Worktable: Holds the material being cut. It can move in different directions to position the workpiece accurately.
● Axes of Movement: CNC machines move the tool and worktable along X, Y, and Z axes. Some machines have extra axes for more complex cuts.
● Control Panel: Interface where operators load programs and control the machine.
● Tool Changer: Automatically swaps tools during machining to perform different cuts without stopping.
Each component must work precisely to ensure the final part matches the design.
Role of G-code in CNC Milling
G-code is the language CNC machines understand. It tells the machine where to move, how fast to spin the tool, when to start or stop cutting, and more. Here’s how it works:
● The design is created in CAD software.
● CAM software converts the design into G-code.
● The CNC machine reads the G-code line by line.
● It moves the tool and workpiece according to the instructions.
G-code allows for exact, repeatable machining. Even complex shapes can be made by programming detailed instructions.
Subtractive vs. Additive Manufacturing
CNC milling is a subtractive process. It starts with a solid block of material and removes parts to shape the final piece. This contrasts with additive manufacturing (like 3D printing), which builds parts by adding material layer by layer.
Advantages of subtractive manufacturing:
● Works well with metals and hard materials.
● Produces smooth finishes and tight tolerances.
● Ideal for parts needing strength and precision.
Limitations compared to additive:
● Can produce more waste material.
● Some complex internal shapes are hard to mill.
Both methods have their place, but CNC milling remains essential for many industries requiring durable, precise parts.
G-code is the universal language that bridges digital designs and physical parts, enabling CNC machines to cut with unmatched precision and repeatability.
Types of CNC Milling Machines
CNC milling machines come in different types, each designed to fit specific manufacturing needs. Knowing these types helps you choose the right machine for your project.
Vertical Milling Machines
Vertical mills have a spindle that points straight down. The cutting tool spins vertically, cutting the top surface of the workpiece. These machines are common because they are versatile and easy to set up. They work well for drilling, slotting, and plunge cuts. Vertical mills are great for small to medium-sized parts and offer good visibility during operation.
Horizontal Milling Machines
Horizontal mills have a spindle that lies horizontally. The cutting tool spins on the side, allowing it to cut the sides of a workpiece. These machines are strong and handle heavy-duty jobs better than vertical mills. They are excellent for cutting deep slots, grooves, and for working on larger parts. Gravity helps clear chips away, which keeps the cutting area clean.
Multi-axis CNC Milling Machines
Multi-axis machines can move the tool and workpiece along more than three axes. Common configurations include 4-axis and 5-axis machines. These extra axes allow the tool to approach the workpiece from many angles, making it possible to create complex shapes in one setup. This reduces the need to reposition the part multiple times, saving time and improving accuracy. Industries like aerospace and medical device manufacturing rely heavily on multi-axis milling for intricate components.
Turret and Bed Mills
Turret mills have a stationary spindle, and the table holding the workpiece moves in multiple directions. This design offers flexibility for various milling operations. Bed mills are similar but allow the spindle to move vertically while the table moves horizontally. Both types are popular in tool rooms and for custom jobs where versatility matters more than speed.
Choosing the right CNC milling machine depends on your part's size, complexity, and production volume, so consider these factors carefully before deciding.
The CNC Milling Process
Designing the Part: CAD Software
The CNC milling process begins with designing the part using CAD (Computer-Aided Design) software. This software lets designers create detailed 3D models of the part before any material is cut. CAD provides a virtual space to test shapes, dimensions, and features, ensuring the design meets all specifications. It also helps identify potential issues early, saving time and resources.
Once the design is complete, it is saved in a format compatible with CAM software. Common file types include STEP and IGES, which preserve the model’s geometry for the next step. This digital blueprint acts as the foundation for all future programming and machining.
Programming the CNC Machine: CAM Software
After design, the CAD model moves into CAM (Computer-Aided Manufacturing) software. CAM translates the 3D design into machine-readable instructions called G-code. This code tells the CNC machine how to move the cutting tool, how fast to spin it, and where to cut.
CAM software allows programmers to select machining strategies such as drilling, contouring, or pocketing. It also simulates the milling operation, showing tool paths and potential collisions before actual cutting begins. This simulation helps optimize the process, reducing errors and material waste.
Programming requires knowledge of the material, tool types, and machine capabilities. Factors like spindle speed, feed rate, and cutting depth are adjusted to balance efficiency and quality.
Setting Up the CNC Machine
Before milling starts, the machine must be set up carefully. This involves several key steps:
● Tool Installation: The correct cutting tool is selected based on the material and operation. It is securely mounted in the spindle.
● Workpiece Securing: The material is clamped firmly on the machine’s worktable to prevent movement during cutting.
● Zero Point Setting: Operators set the machine’s reference point, usually at a corner or center of the workpiece. This zero point guides all tool movements.
● Calibration: The machine’s alignment and settings are checked and adjusted to ensure accuracy.
Proper setup is crucial. Mistakes here can cause defects, machine damage, or safety hazards.
Conducting the Milling Operation
With setup complete, the milling operation begins. The CNC machine reads the G-code line by line, moving the cutting tool precisely along programmed paths. The spindle rotates the tool at the specified speed while the tool and worktable move along multiple axes.
During milling, the machine continuously monitors tool position and cutting conditions. It adjusts movements in real-time to maintain accuracy and surface finish. The operation continues until all material is removed, and the part matches the design.
After milling, the finished part is removed and inspected. Additional finishing processes may be applied if needed.
Always verify tool paths in CAM simulation before milling to prevent costly errors and material waste.
Applications of CNC Milling
CNC milling plays a vital role across many industries due to its precision, efficiency, and ability to create complex parts. Here’s how different sectors benefit from this technology:
Aerospace Industry
The aerospace sector demands parts with tight tolerances and complex geometries. CNC milling produces components like turbine blades, engine mounts, and structural frames. It works well with high-strength materials such as titanium and aluminum alloys, which are common in aerospace. The ability to machine intricate shapes in a single setup reduces production time and increases reliability—key for safety-critical parts.
Automotive Industry
In automotive manufacturing, CNC milling helps produce engine blocks, transmission housings, and custom parts. It supports both prototyping and mass production. The speed and repeatability of CNC milling ensure consistent quality across thousands of parts. Additionally, it can handle a variety of materials, from aluminum to hardened steel, making it versatile for different vehicle components.
Medical Industry
Medical devices require exceptional precision and cleanliness. CNC milling is used to make surgical instruments, implants, and prosthetics. Its accuracy ensures parts fit perfectly and function safely in the human body. Materials like stainless steel, titanium, and biocompatible plastics are commonly milled. The repeatability also supports regulatory compliance, as every part must meet strict standards.
Electronics and Other Industries
CNC milling is crucial in electronics for producing circuit board housings, connectors, and small mechanical parts. The ability to mill tiny, detailed features enhances product performance and reliability. Other industries, such as defense, energy, and consumer goods, also rely on CNC milling for custom parts, tooling, and prototypes. Its flexibility makes it suitable for a wide range of applications.
When choosing CNC milling for your project, consider the material and complexity to select the best machine type and tooling for optimal results.
Advantages and Limitations of CNC Milling
Precision and Repeatability
CNC milling offers exceptional precision, often achieving tolerances as tight as 0.001 inches. This level of accuracy is vital for industries like aerospace and medical devices, where every detail matters. Once a program is set, the machine can produce identical parts repeatedly with minimal variation. This repeatability reduces errors and waste, ensuring consistent quality across large production runs.
Versatility and Efficiency
One of CNC milling's biggest strengths is its versatility. It can create simple shapes or complex, multi-dimensional parts by moving tools along multiple axes. This flexibility allows manufacturers to handle a wide range of projects, from prototypes to mass production. CNC milling machines also boost efficiency by running automatically once programmed. They can change tools mid-operation, reducing downtime and speeding up production.
Initial Costs and Setup Complexities
Despite its benefits, CNC milling requires significant upfront investment. Machines can be costly, and programming them demands skilled operators. Setting up a new part involves careful calibration, tool selection, and workpiece securing, which can be time-consuming. For small production runs, these setup costs may outweigh the benefits, making CNC milling less economical compared to manual methods or additive manufacturing.
Physical Constraints and Design Limitations
CNC milling has some physical limits. The size of the machine restricts the maximum part size it can handle. Complex internal geometries or undercuts are difficult to mill because the cutting tool must maintain contact with the workpiece. Some designs may require multiple setups or alternative manufacturing methods. Additionally, milling generates waste material, which can be a concern for cost and sustainability.
To maximize CNC milling benefits, invest in thorough programming and setup; this reduces errors, improves precision, and enhances production efficiency.
Conclusion
CNC milling is a versatile manufacturing process offering precision and repeatability, crucial for industries like aerospace and medical devices. It efficiently produces complex parts, though initial setup can be costly. Future trends include technological advancements enhancing speed and accuracy. Overall, CNC milling significantly impacts modern manufacturing. Hunan Langle Technology Co., Ltd. provides innovative solutions, ensuring high-quality CNC milling services. Their products deliver exceptional value, supporting diverse industry needs with precision and reliability.
FAQ
Q: What is CNC Milling?
A: CNC Milling is a machining process that uses computer-controlled machines to remove material from a workpiece, creating precise parts.
Q: How does CNC Milling differ from traditional milling?
A: Unlike traditional milling, CNC Milling uses digital programs for precise control, allowing for complex shapes and faster design changes.
Q: Why is CNC Milling important in manufacturing?
A: CNC Milling is crucial for its precision, repeatability, and ability to produce complex parts efficiently, benefiting industries like aerospace and automotive.
Q: What factors affect the cost of CNC Milling?
A: The cost of CNC Milling depends on machine type, material, part complexity, and production volume. Initial setup can be costly but efficient for large runs.
